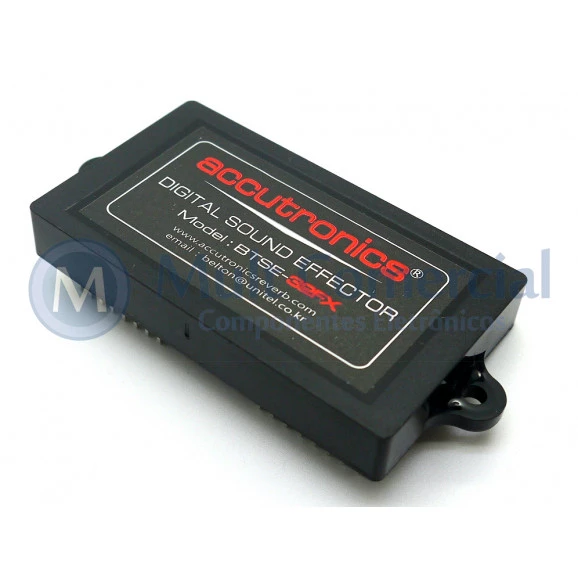

O módulo BTSE-32FX fornece 32 efeitos de áudio digitais diferentes para ser usado para mixers ou outras aplicações de áudio que necessitam de melhoria de som. Equipado com o motor de processamento de efeitos digitais de excelente qualidade, que acrescenta que um punch extra necessário para fazer apresentações de áudio que realmente se destaca.
FX Presets> 32
Passband Frequency> 20hz ~ 20khz
DSP arithmetic> 24 bit
S/N (A-weighted)> 90 dB
Dynamic Range> 90 dB
Sampling Rate> 48 khz
Power Supply> DC 5V
RoHS (PB free)> O
Dimensões (Largura x Comprimento)> 64 x 35 mm
- Guitarra e Teclados, Amplificadores
- Mesas de Som
- Sistemas de Karaoke
- Stand -alone Stereo e sistemas de PA
Reverb | Delay | Chorus | ||||||
01 | Hall | 6.0 sec | 14 | Delay 50% | 400 ms | 23 | Chorus & Hall slow | 4.0 sec |
02 | Hall | 4.5 sec | 15 | Delay 50% | 500 ms | 24 | Chorus & Delay medium | 0.15 sec |
03 | Hall | 3.0 sec | 16 | Delay 50% | 800 ms | 25 | Chorus & Delay slow | 0.3 sec |
04 | Hall | 1.6 sec | 17 | Voice Doubler | 60 ms | Flanger | ||
05 | Room | 1.6 sec | 18 | Voice Doubler | 120 ms | 26 | Flanger slow | |
06 | Room | 1.0 sec | 19 | Chorus slow | 27 | Flanger medium | ||
07 | Plate | 3.0 sec | 20 | Chorus medium | 28 | Flanger fast | ||
08 | Plate | 1.6 sec | 21 | Chorus fast | ||||
09 | Ambient | 1.6 sec | 22 | Chorus & Hall medium | 2.0 sec | 29 | Gated Reverb | 125 ms |
10 | Delay & Room | 1.6 sec | 30 | Gated Reverb | 200 ms | |||
11 | Delay 50% | 100 ms | 31 | Reverse Reverb | 150 ms | |||
12 | Delay 50% | 200 ms | 32 | Reverse Reverb | 250 ms | |||
13 | Delay 50% | 300 ms |
Part | Pin | Name | Function |
CN1 | 1 | L-Out | Audio Out Left |
2 | R-Out | Audio Out Right | |
3 | AGND | Analog Ground | |
4 | IN | Auido Input | |
5 | 3.6V | +3.6V Out | |
6 | AGND | Analog Ground | |
7 | MUTE | Mute (SW 5 bit) | |
8 | FND-DATA | FND Data out | |
CN2 | 1 | DB0 | Serial data |
2 | DB1 | Serial clock | |
3 | RSTC | Rest | |
4 | GND | Ground | |
5 | 3.6V | +3.6V Out | |
CN3 | 1 | SW1 | SW 0 bit |
2 | SW2 | SW 1 bit | |
3 | SW3 | SW 2 bit | |
4 | SW4 | SW 3 bit | |
5 | BANK | SW 4 bit | |
6 | DGND | Digtial Ground | |
7 | FND-CLK | FND clock out | |
8 | 5V | +5V power supply | |
CN4 | 1 | ISP-CLK | ISP Clock |
2 | ISP-SD | Analog Ground | |
3 | RSTB | Rest | |
4 | GND | Ground | |
5 | 3.6V | Analog Ground | |
6 | TEST | Test |
※ CN2, CN4 Pin is only used download firmware on MCU, EEPROM |
Marca | Accutronics & Belton |
---|
Quantidade Em Estoque: 20
